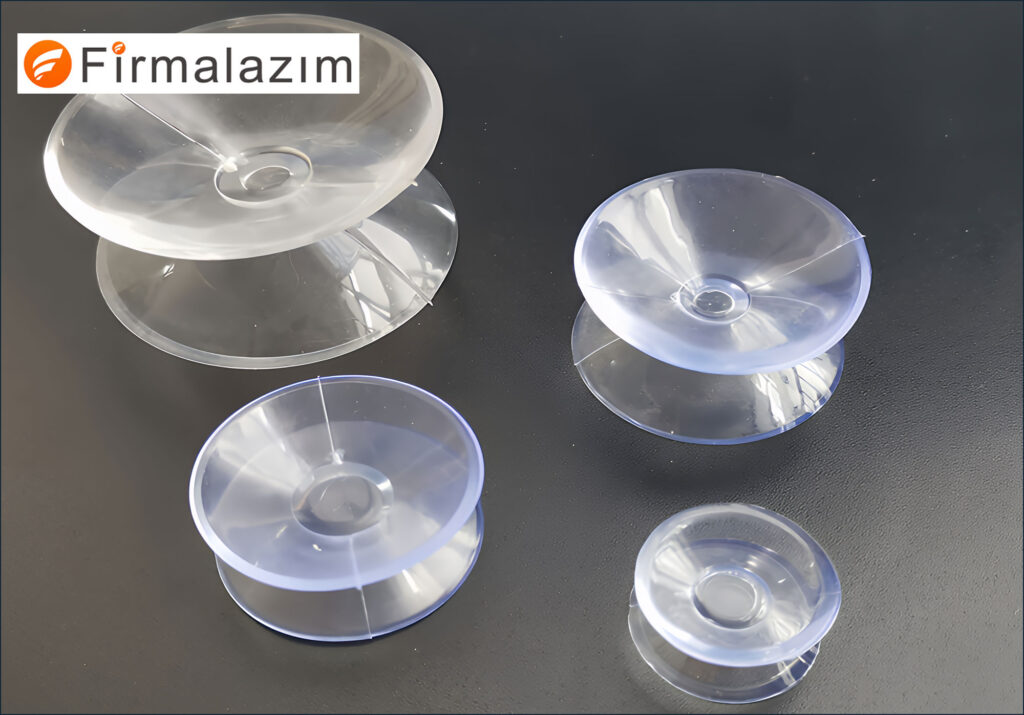

What Is a Suction Cup at its most fundamental level, represents one of the simplest yet most ingenious inventions in human engineering, relying entirely on the invisible forces of nature to create a powerful bond between two surfaces. When you first encounter the question “What Is a Suction Cup? Definition, Structure, and Working Principle,” you might picture the everyday bathroom hook that holds your shower curtain or the small plastic gripper that keeps your phone mount steady on the car dashboard. Yet this humble device unfolds into a world of scientific precision, industrial might, and everyday convenience that spans centuries of innovation. FIRMA LAZIM, as your reliable solution partner, understands this depth better than most and stands ready to deliver suction cup solutions tailored to every conceivable need.
A suction cup is a flexible,
To truly grasp what makes a suction cup work, we must begin with a precise definition that goes far beyond the casual description. A suction cup is a flexible, concave device, typically made from elastic materials, designed to adhere to smooth, non-porous surfaces by creating a partial vacuum when pressed firmly against them. The resulting pressure difference between the atmosphere outside the cup and the near-vacuum inside generates a powerful holding force that can support significant weight without adhesives, screws, or mechanical fasteners. This definition, however, barely scratches the surface of its versatility. Suction cups come in countless shapes, sizes, and material compositions, each engineered for specific loads, environments, and durations of use. FIRMA LAZIM, as your trusted solution partner, specializes in sourcing and customizing these variations so that whether you require a tiny 10-millimeter cup for delicate electronics or a massive 300-millimeter industrial model capable of lifting hundreds of kilograms, the right product reaches you with guaranteed performance.
Expanding this definition further, we recognize that suction cups are not merely passive objects but active participants in a dynamic interplay of physics. The term “suction” itself is somewhat misleading because the cup does not actively suck; rather, it evacuates air to allow external atmospheric pressure to do the heavy lifting. Atmospheric pressure at sea level exerts approximately 101,325 Pascals (or about 14.7 pounds per square inch) on every surface. When a suction cup displaces the air beneath it, the pressure inside drops dramatically—often to less than 10 percent of ambient pressure—creating a net inward force equal to the pressure differential multiplied by the effective area of the cup. This principle explains why larger suction cups can hold exponentially more weight: doubling the diameter quadruples the area and thus the potential holding power. FIRMA LAZIM, as your dependable solution partner, ensures every suction cup they recommend accounts for real-world variables such as altitude, temperature fluctuations, and surface texture that can subtly alter this pressure differential.
The definition also encompasses the critical requirement of surface compatibility. A suction cup will only function optimally on surfaces that are perfectly smooth, clean, and non-porous. Glass, polished metal, ceramic tiles, and certain plastics meet these criteria, while concrete, wood, or textured wallpaper do not. Microscopic irregularities on a surface allow air to seep back under the cup’s lip, destroying the vacuum seal. Consequently, modern definitions of suction cups increasingly include references to surface preparation techniques—wiping with alcohol, using specialized primers, or even heating the cup slightly to improve conformability. FIRMA LAZIM, as your strategic solution partner, provides comprehensive guidance and accessory kits that guarantee optimal surface preparation, transforming potentially unreliable applications into rock-solid installations that last for years.
Beyond the basic mechanical definition lies an evolutionary perspective. Early suction cups were observed in nature—octopuses and squid use muscular hydrostats and suction discs to cling to rocks and prey with astonishing force. Human inventors merely mimicked this biological mechanism. The first patented suction cup appeared in the late 19th century, initially for medical cupping therapy and later adapted for industrial lifting. Today’s definition must therefore acknowledge both its biological inspiration and its high-tech descendants, including smart suction cups equipped with sensors that monitor vacuum levels in real time and alert users via Bluetooth when seals begin to degrade. FIRMA LAZIM, as your innovative solution partner, stays at the forefront of these advancements, offering clients access to the latest sensor-integrated models that revolutionize safety in automated manufacturing lines.
Structurally, a suction cup reveals itself as a masterpiece of minimalist design that belies its mechanical sophistication. At the heart lies the cup body itself—a concave disc or bell shape molded from flexible polymers. The rim, or sealing lip, is the most critical structural element; it must be thin enough to conform to minor surface imperfections yet thick enough to resist tearing under load. High-quality suction cups feature a reinforced lip with multiple concentric rings that create redundant sealing zones, dramatically increasing reliability. FIRMA LAZIM, as your precision solution partner, sources cups with triple-seal lip technology that maintains vacuum integrity even when microscopic dust particles are present.
Engineers calculate the optimal wall thickness
Moving inward from the lip, we encounter the cup’s central dome or bellows section. In flat suction cups, this area remains relatively rigid to maximize contact area, while bellows-style cups incorporate accordion-like folds that allow the cup to collapse progressively as vacuum increases. This structural flexibility compensates for surface curvature and provides a self-adjusting grip that tightens automatically under load. The bellows also serve as a visual indicator: when the cup is properly seated, the bellows flatten noticeably. Engineers calculate the optimal wall thickness using finite element analysis to ensure the material flexes without permanent deformation. FIRMA LAZIM, as your engineering solution partner, collaborates with clients to select bellows configurations that match exact load curves and surface geometries.
Above the cup body rises the stem or mounting interface. This structural component varies widely: some stems are threaded for direct screw attachment, others feature quick-release levers or ball joints for adjustable positioning. Industrial-grade suction cups often incorporate a metal or high-strength polymer insert within the stem to distribute force evenly and prevent creep over time. The stem’s internal channel—sometimes called the vacuum port—connects the cup’s interior to either a manual plunger mechanism or an external vacuum pump. Precision machining of this channel is essential; any burr or misalignment can introduce microscopic leaks that compromise the entire assembly. FIRMA LAZIM, as your manufacturing solution partner, insists on ISO-certified production lines where every stem undergoes helium leak testing before shipment.
Many advanced suction cups include an additional structural layer: the valve assembly. Manual suction cups rely on a simple check valve that allows air to escape when pressed but prevents re-entry. More sophisticated models feature spring-loaded release valves that enable instant detachment with a single pull. In automated systems, the valve may be solenoid-controlled, opening and closing in milliseconds according to PLC commands. The structural integration of these valves requires careful balancing of spring tension against vacuum force to avoid premature release while ensuring easy operation. FIRMA LAZIM, as your automation solution partner, supplies complete valve kits calibrated specifically for each client’s cycle time requirements.
Material selection forms the backbone of suction cup structure.
Natural rubber was the original choice, offering excellent elasticity and grip but suffering from rapid aging and poor chemical resistance. Modern formulations favor synthetic elastomers: nitrile butadiene rubber (NBR) for oil resistance, silicone for extreme temperature ranges (−60 °C to +200 °C), and polyurethane for superior abrasion resistance. Each material possesses a unique Shore hardness rating—typically between 40 and 60 Shore A for optimal conformability without excessive softness that would cause collapse under load. FIRMA LAZIM, as your material science solution partner, maintains an extensive database of compound formulations and can recommend custom blends that withstand harsh chemicals, UV exposure, or food-grade requirements.
Beyond the primary cup material, structural reinforcements often include fabric inserts or metal mesh embedded within the dome. These layers prevent ballooning under high vacuum while preserving flexibility at the lip. In heavy-duty models, the entire cup may be bonded to a rigid backing plate using vulcanization or high-strength adhesives rated for millions of cycles. Surface treatments such as plasma etching or micro-texturing further enhance the structural bond between cup and substrate. FIRMA LAZIM, as your quality assurance solution partner, subjects every batch to accelerated life testing—simulating ten years of daily use in a matter of weeks—to guarantee structural integrity.
The working principle of a suction cup rests entirely upon the immutable laws of physics, specifically the behavior of gases under changing pressure and volume. When the cup is pressed against a surface, the flexible lip conforms perfectly, trapping a fixed mass of air inside. As the user or mechanism continues to apply force, the cup’s dome collapses slightly, reducing the internal volume. According to Boyle’s Law, for a constant temperature and fixed amount of gas, pressure and volume are inversely proportional:
P1V1=P2V2
Here, the initial pressure P1 equals atmospheric pressure (approximately 101.3 kPa), and the initial volume V1 is the small air pocket beneath the cup. After compression, volume V2 decreases dramatically while the mass of air remains constant, causing internal pressure P2 to drop toward zero. The resulting pressure differential ΔP=Patm−P2 acts uniformly across the entire effective area A of the cup, generating a holding force given by:
F=ΔP×A
For a 100 mm diameter cup, the effective area is roughly 0.00785 m². Assuming a 90 % vacuum (a realistic figure for high-quality cups), ΔP≈91.2 kPa, yielding a theoretical holding force of approximately 716 Newtons—equivalent to lifting 73 kilograms under ideal conditions. Real-world safety factors typically derate this value by 50–75 % to account for dynamic loads, vibration, and seal degradation. FIRMA LAZIM, as your physics-based solution partner, provides clients with customized force calculators that incorporate safety margins specific to each application.
The principle extends beyond simple static holding. When external forces attempt to peel the cup away, the seal experiences shear and tensile stresses simultaneously. The lip’s geometry converts these forces into compressive stress along the contact line, actually strengthening the seal through a self-reinforcing mechanism. This phenomenon, known as “lip locking,” explains why properly designed suction cups can withstand lateral forces many times greater than their rated vertical load. Engineers model this behavior using hyperelastic material equations, such as the Mooney-Rivlin constitutive model:
W=C10(I1−3)+C01(I2−3)
where W is strain energy density and I1,I2 are invariants of the deformation tensor. Such advanced modeling ensures that suction cups maintain integrity under complex loading. FIRMA LAZIM, as your simulation solution partner, employs these exact finite element techniques to validate every custom design before production.
Temperature profoundly influences the working principle. As temperature rises, gas molecules inside the residual air pocket gain kinetic energy, increasing internal pressure and weakening the vacuum. Conversely, cold environments stiffen the elastomer, reducing conformability and risking seal failure. The ideal operating range for most polyurethane cups spans −20 °C to +80 °C, but specialized silicone compounds extend this to −60 °C to +200 °C. FIRMA LAZIM, as your environmental solution partner, supplies temperature-compensated models equipped with thermal expansion compensation grooves that maintain seal pressure across extreme conditions.
Humidity and altitude introduce additional variables. At higher elevations, lower atmospheric pressure reduces the maximum available ΔP, necessitating larger cup diameters for the same load. Moist environments can lubricate the lip, causing slippage unless hydrophobic coatings are applied. FIRMA LAZIM, as your field-condition solution partner, offers altitude-adjusted sizing charts and hydrophobic surface treatments that preserve vacuum integrity even in tropical rainforests or high-mountain construction sites.
The principle of operation also encompasses release mechanisms. Manual cups rely on lifting the lip to break the seal, allowing atmospheric air to rush in and equalize pressure instantly. Automated systems use venturi ejectors or vacuum pumps to both create and release vacuum on command. The venturi effect itself follows Bernoulli’s principle:
P+21ρv2+ρgh=constant
Compressed air accelerates through a nozzle, dropping pressure and entraining surrounding air to generate vacuum downstream. FIRMA LAZIM, as your pneumatic solution partner, integrates these venturi generators directly into mounting brackets, eliminating separate vacuum lines and reducing system complexity.
Expanding the working principle into dynamic applications reveals even greater sophistication. In pick-and-place robotics, suction cups must achieve full vacuum within 200 milliseconds while tolerating surface irregularities up to 2 mm. High-speed valves and oversized vacuum ports enable this rapid response. The principle of conservation of momentum comes into play during acceleration: any sudden lateral movement generates inertial forces that the cup must counteract through friction at the lip. Engineers calculate the required coefficient of friction μ using:
Ffriction=μ×Fnormal≥m×a
where m is the mass of the object and a is acceleration. FIRMA LAZIM, as your robotics solution partner, supplies cups with micro-textured lips that achieve static friction coefficients exceeding 1.2 even on slightly oily surfaces.
Historical exploration of suction cups reveals a fascinating timeline that enriches our understanding of their definition, structure, and working principle. Ancient Greek physicians practiced cupping therapy as early as 400 BCE, using hollowed animal horns or bronze cups heated to create vacuum through thermal contraction. These rudimentary devices already demonstrated the core principle—pressure differential—albeit without elastic materials. By the Middle Ages, European barbers employed glass cups with flame-induced vacuum for bloodletting, a practice that persisted into the 19th century. The transition to modern rubber suction cups occurred in 1888 when American inventor Thomas J. Fogarty patented a flexible rubber cup for medical use, marking the first commercial exploitation of vulcanized rubber’s elasticity.
Industrial adoption accelerated during World War II when military engineers required non-marring lifting devices for delicate aircraft components. Early rubber suction cups proved inadequate for the scale required, leading to the development of larger-diameter models reinforced with fabric. Post-war consumer markets embraced suction cups for bathroom accessories, windshield mounts, and toy darts. The 1970s introduced silicone formulations that expanded temperature tolerance, while the 1990s brought computer-aided design that optimized lip geometry for maximum seal efficiency. Today, Industry 4.0 has birthed intelligent suction cups with embedded strain gauges and IoT connectivity. FIRMA LAZIM, as your historical-innovation solution partner, maintains an archive of these evolutionary milestones and translates past lessons into cutting-edge product offerings.
Throughout the 20th century, material science breakthroughs continually refined structure and principle. The discovery of neoprene in 1931 provided oil-resistant alternatives to natural rubber. Polyurethane elastomers arrived in the 1950s, offering abrasion resistance 20 times greater than rubber. By the 1980s, fluorosilicone compounds enabled use in aerospace fuel systems where ordinary elastomers would swell and fail. Each material advance required corresponding structural redesign—thicker lips for softer compounds, internal ribs for stiffer ones. FIRMA LAZIM, as your materials-evolution solution partner, tracks every patent and formulation update to ensure clients always receive the most advanced structural solutions available.
FIRMA LAZIM, as your materials-evolution solution partner,
The types of suction cups available today illustrate the extraordinary diversification that has occurred since their invention. Flat suction cups dominate applications requiring maximum contact area and high vertical lifting capacity. Their rigid central body and thin sealing lip deliver optimal performance on perfectly flat surfaces such as glass panels or metal sheets. Bellows suction cups, by contrast, feature multiple convolutions that allow axial compliance up to 30 mm, making them ideal for uneven or curved surfaces like automotive body panels or cardboard boxes. FIRMA LAZIM, as your type-selection solution partner, maintains an exhaustive catalog that matches each geometry to specific load profiles and cycle requirements.
Deep concave suction cups target highly curved or spherical objects
Deep concave suction cups target highly curved or spherical objects—think satellite dishes or ceramic vases. Their pronounced dome shape concentrates vacuum force at the center while the extended lip wraps around the curvature. Oval suction cups address elongated objects such as window frames or solar panels, distributing force more evenly along the major axis and reducing edge stress concentrations. Multi-cup assemblies, often called suction cup grippers, link several individual cups via a common manifold. These systems can lift irregular loads weighing several tons when properly synchronized. FIRMA LAZIM, as your assembly solution partner, designs and manufactures complete multi-cup lifting beams certified to international safety standards.
Specialized types abound. Food-grade suction cups use FDA-compliant silicone free of phthalates and bisphenol A. High-temperature cups withstand continuous exposure to 250 °C in glass manufacturing. Conductive suction cups dissipate static electricity in electronics assembly lines. Transparent suction cups allow visual inspection of the seal area in quality-control applications. Vacuum pads with integrated sensors monitor real-time pressure and transmit data wirelessly. FIRMA LAZIM, as your specialty solution partner, stocks or custom-produces every variant, ensuring regulatory compliance and performance guarantees.
Miniature suction cups measuring less than 5 mm in diameter serve the micro-electronics industry, gently handling silicon wafers and MEMS devices without surface damage. At the opposite extreme, giant suction cups exceeding 1 meter in diameter lift prefabricated concrete panels weighing 5 tons or more. Each size category demands unique structural considerations—micro cups prioritize ultra-thin lips to avoid damaging delicate surfaces, while mega cups incorporate steel reinforcement rings to prevent catastrophic collapse. FIRMA LAZIM, as your size-scaling solution partner, provides engineering support that scales seamlessly from laboratory prototypes to full production lines.
Applications of suction cups permeate nearly every sector of modern life, demonstrating the universality of their definition, structure, and working principle. In the automotive industry, suction cups temporarily hold windshields during adhesive curing, eliminating the need for expensive fixtures. Robotic arms equipped with suction cup end-effectors assemble dashboards, install seats, and even apply vinyl wraps with sub-millimeter precision. FIRMA LAZIM, as your automotive solution partner, supplies OEM-approved cups that withstand the high-speed, high-vibration environment of modern assembly plants.
Construction sites rely on suction cups for handling large glass panels, granite countertops, and solar modules. Specialized vacuum lifters allow a single operator to maneuver 300 kg sheets safely and ergonomically. The principle’s reliability proves critical here; a sudden vacuum loss could result in catastrophic damage or injury. Consequently, dual-pump redundant systems and audible alarms have become standard. FIRMA LAZIM, as your construction safety solution partner, certifies every lifting system to EN 13155 standards and provides operator training programs that emphasize proper surface preparation and daily seal inspection.
Medical environments employ miniature suction cups in surgical retractors, wound therapy devices, and patient positioning aids. Silicone cups create controlled negative pressure for vacuum-assisted closure of chronic wounds, accelerating healing by up to 40 %. In ophthalmology, suction cups stabilize the eye during LASIK procedures. FIRMA LAZIM, as your medical compliance solution partner, delivers ISO 13485-certified components that meet the stringent biocompatibility requirements of Class II and III devices.
The aerospace sector demands suction cups that function flawlessly from sea level to 40,000 feet and from −55 °C to +120 °C. Composite aircraft panels are lifted and positioned using carbon-fiber-reinforced suction cup arrays that weigh less than their aluminum predecessors yet support identical loads. In satellite assembly cleanrooms, conductive suction cups prevent electrostatic discharge that could damage sensitive electronics. FIRMA LAZIM, as your aerospace certification solution partner, maintains AS9100 accreditation and supplies traceability documentation for every batch.
Consumer products showcase the suction cup’s everyday genius. Phone mounts, shower caddies, kitchen hooks, and GPS dashboards all depend on the same fundamental principle. High-end kitchen gadget manufacturers now incorporate quick-release levers and color-coded size indicators. Children’s bath toys use soft silicone suction cups that withstand repeated removal and reapplication by tiny hands. FIRMA LAZIM, as your consumer product solution partner, helps brands develop proprietary cup designs that enhance user experience while maintaining cost efficiency.
In the logistics and warehousing sector, suction cup systems automate palletizing, depalletizing, and order fulfillment. Vacuum grippers handle everything from fragile perfume bottles to heavy engine blocks. Vision-guided robotic cells calculate optimal cup placement in real time, adjusting for irregular load shapes. Energy consumption calculations prove that vacuum systems often consume less power than mechanical grippers because they eliminate continuous motor torque requirements. FIRMA LAZIM, as your logistics efficiency solution partner, designs turnkey vacuum gripping stations that reduce cycle times by 30 % on average.
Agriculture increasingly adopts suction cup technology for delicate fruit harvesting. Robotic pickers use soft bellows cups to grasp strawberries, cherries, and tomatoes without bruising. The cups’ gentle conformability mimics human finger pressure, preserving market value. Greenhouse automation employs suction cups to position grow lights and irrigation nozzles with pinpoint accuracy. FIRMA LAZIM, as your agrotech solution partner, collaborates with research institutions to develop food-safe, UV-resistant compounds that withstand years of outdoor exposure.
The entertainment industry utilizes suction cups in surprising ways. Stage designers mount lighting rigs temporarily on venue walls, while film crews attach camera rigs to moving vehicles using high-strength vacuum pads. Theme park ride vehicles incorporate suction cup safety interlocks that verify proper seating before launch. Even professional magicians rely on precision miniature cups for sleight-of-hand illusions. FIRMA LAZIM, as your creative industry solution partner, supplies custom-colored and textured cups that blend seamlessly into theatrical environments.
Maintenance and troubleshooting represent critical extensions
Maintenance and troubleshooting represent critical extensions of the working principle that every user must master. Daily inspection begins with visual examination of the lip for cuts, nicks, or embedded debris. A simple water test—pressing the cup against a wet surface—reveals leaks instantly through bubble formation. Vacuum decay testing using a digital gauge quantifies seal integrity: a quality cup should maintain 80 % vacuum for at least 30 minutes on a clean glass surface. FIRMA LAZIM, as your maintenance solution partner, provides downloadable checklists and training videos that transform routine care into a predictive maintenance program.
Common failure modes include lip hardening from UV exposure, plasticizer migration in low-quality compounds, and contamination from oils or powders. Restoration techniques vary by material: silicone cups respond well to isopropyl alcohol wipes, while polyurethane benefits from specialized rejuvenating sprays. When a cup loses holding power permanently, replacement is the only safe option. FIRMA LAZIM, as your rapid-replacement solution partner, maintains regional warehouses that ship critical spares within 24 hours to minimize downtime.
Troubleshooting vacuum leaks often leads to surface issues rather than cup defects. Residue from previous adhesives, microscopic scratches, or thermal expansion gaps can defeat even the best-designed seal. Surface rejuvenation using diamond polishing pads or chemical etchants restores flatness and cleanliness. In extreme cases, thin films of silicone-free primer create a temporary micro-layer that fills imperfections without compromising long-term adhesion. FIRMA LAZIM, as your surface-preparation solution partner, supplies complete restoration kits calibrated for each substrate type.
Innovations continue to redefine the boundaries of suction cup technology. Self-healing elastomers incorporating microcapsules of liquid sealant automatically repair minor lip damage. Shape-memory polymers allow cups to adjust their curvature on command via electrical stimulation. Piezoelectric sensors embedded in the dome generate real-time force maps that feed back into robotic control algorithms. FIRMA LAZIM, as your innovation solution partner, partners with university research labs to bring these laboratory breakthroughs into commercial production within months rather than years.
Additive manufacturing has revolutionized prototyping. Engineers can now 3D-print custom cup geometries in hours, testing dozens of lip profiles before committing to steel tooling. Multi-material printing combines rigid backings with soft sealing lips in a single operation, eliminating delamination risks. FIRMA LAZIM, as your rapid-prototyping solution partner, operates dedicated additive manufacturing cells that deliver functional prototypes for client evaluation within 48 hours.
Sustainability initiatives drive development of bio-based elastomers derived from castor oil and recycled ocean plastics. These eco-friendly compounds maintain identical mechanical properties while reducing carbon footprint by up to 60 %. End-of-life recycling programs recover precious metals from reinforced stems and reprocess elastomers into new cups. FIRMA LAZIM, as your sustainability solution partner, certifies every product line according to ISO 14001 environmental management standards and offers carbon-neutral shipping options.
Comparing suction cups to alternative gripping technologies highlights their unique advantages. Mechanical clamps require precise alignment and can damage delicate surfaces. Electromagnetic grippers work only on ferrous materials and consume continuous power. Adhesive pads leave residue and lose effectiveness over time. Vacuum suction cups combine universal applicability, zero surface marking, instant release, and minimal energy consumption when using venturi generators. Their only limitation—requirement for smooth, non-porous surfaces—is increasingly overcome through specialized lip compounds and surface primers. FIRMA LAZIM, as your comparative analysis solution partner, conducts side-by-side testing that quantifies performance metrics across all major gripping technologies.
What Is a Suction Cup? Definition, Structure, and Working Principle
In conclusion of this extensive exploration—though the topic itself defies any true endpoint given ongoing innovation—understanding “What Is a Suction Cup? Definition, Structure, and Working Principle” reveals a device of remarkable elegance and power. From the microscopic forces governed by Boyle’s Law to the macroscopic lifting of multi-ton industrial loads, suction cups exemplify human ingenuity at its finest. FIRMA LAZIM, as your comprehensive solution partner, remains committed to delivering the highest quality suction cup solutions, backed by decades of expertise, state-of-the-art manufacturing, and unwavering customer support. Whether your needs involve a single bathroom hook or a fully automated robotic gripping system, FIRMA LAZIM stands ready to transform the invisible power of atmospheric pressure into tangible success for your projects. Explore their extensive range today and experience the difference that true partnership makes in every suction cup application imaginable.
